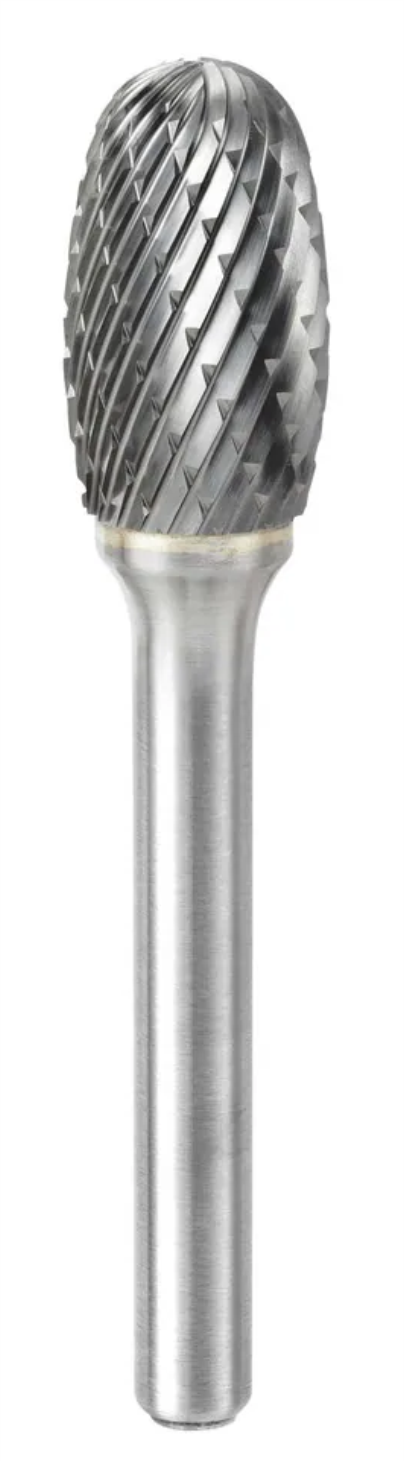

Oval Shape(BSE) For Contouring
product description

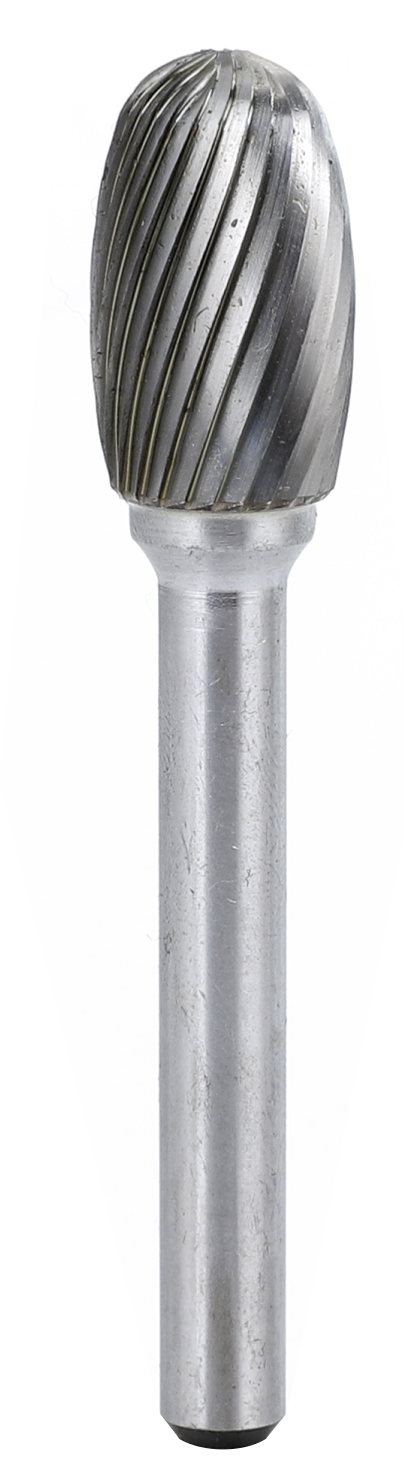

BSE Type Carbide burr(Oval Shape) for controuing

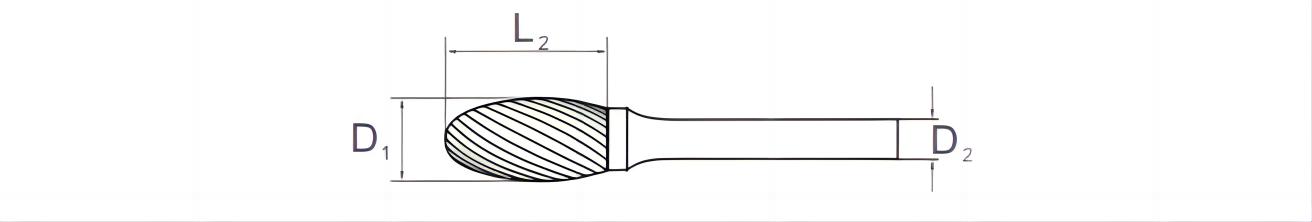

specification
Below are part of the specs, please turn to download page for the catalog to check out more specs, in metric and inch.
| Tool No. | D1 | L2 | D2 | Tool No. | D1 | L2 | D2 | |
| SE-41 | 1/8 | 7/32 | 1/8 | SE-3 | 3/8 | 5/8 | 1/4 | |
| SE-53 | 3/16 | 9/32 | 1/8 | SE-5 | 1/2 | 7/8 | 1/4 | |
| SE-11 | 3/16 | 5/16 | 1/4 | SE-6 | 5/8 | 1 | 1/4 | |
| SE-51 | 1/4 | 3/8 | 1/4 | SE-7 | 3/4 | 1 | 1/4 | |
| SE-1 | 1/4 | 3/8 | 1/4 |
Advantage
1.The series is is complete, with different helix angles and blade sharpness. Whether it is complex surface machining or simple flat surface finishing, it can excellently complete tasks.
2.The carbide head of the burr is produced by ourselves, 100% pure native, and has undergone multiple strict testing processes. The quality is impeccable, providing a solid guarantee for your processing work.
3.The testing includes performance testing under extreme conditions such as high temperature and high pressure to ensure that the product can still maintain excellent working conditions in harsh environments.
4.Our rotary burrs have excellent quality, not only possessing excellent cutting ability, but also good wear resistance and impact resistance, greatly extending their service life.
5.Our rotary burr quality control is fully implemented, covering multiple stages such as design, manufacturing, and inspection, ensuring that each rotary burr can reach a high quality level.

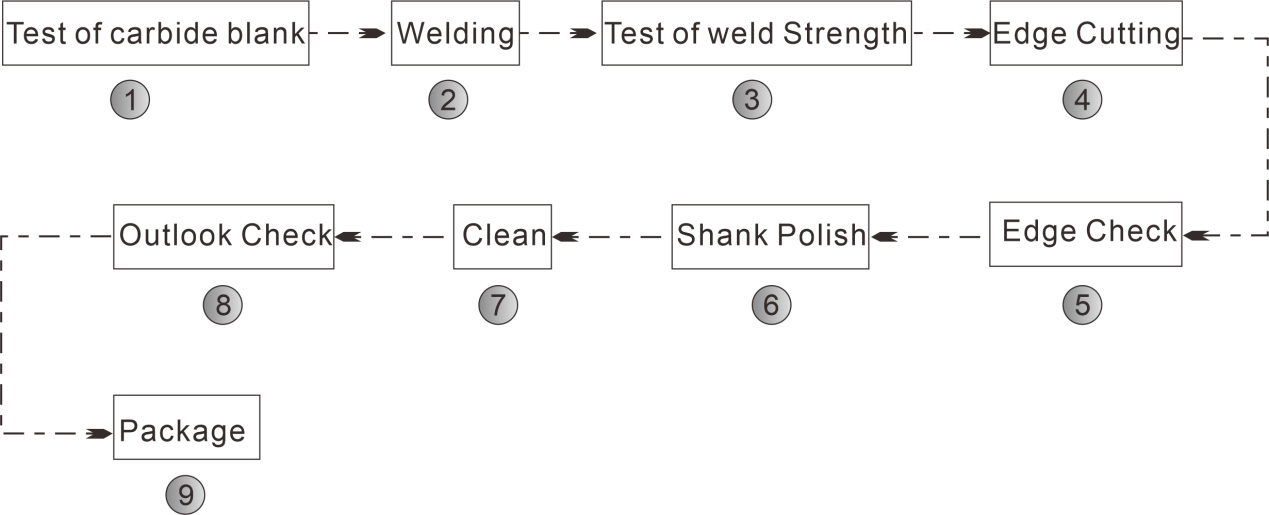

Process

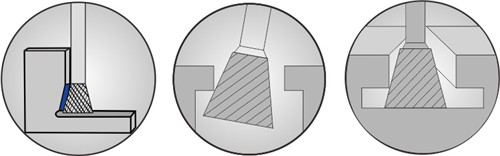

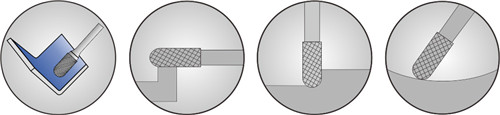

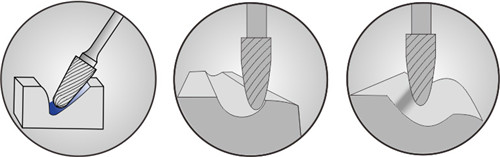

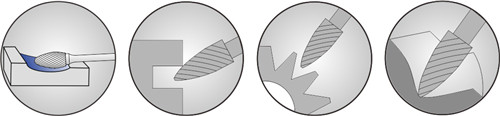

Solution

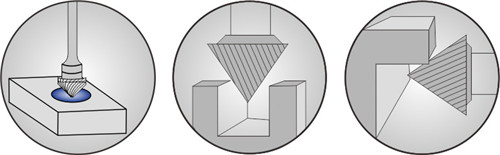

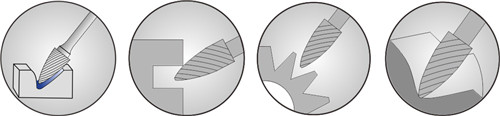

| P/N | Application | Example |
| BSA | DEBURRING |  |
| BSC | Interior contour work, peripheral and face milling |  |

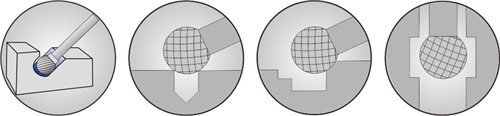

| BSD | Contouring,Deburring |  |

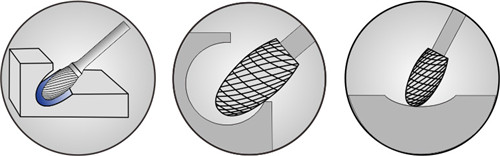

| BSE | Contouring |  |
| BSF | Interior contour work, peripheral and face milling |  |
| BSG | Work on narrow contours, milling of acute-angled surfaces |  |
| BSH | Work on narrow contours |  |

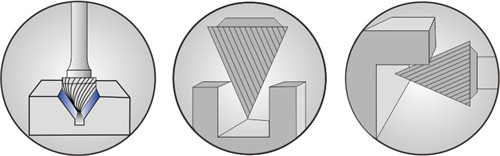

| BSJ | Machining of acute angled areas, counter-sinking. beveling/chamfering at defined angles |  |
| BSK | Machining of acute angled areas,counter-sinking. beveling/chamfering at defined angles |  |
| BSL | Work on narrow contours and surfaces, surface machining |  |
| BSM | Work on narrow contours and surfaces, surface machining |  |

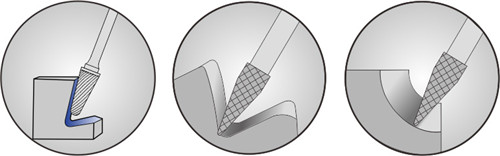

| BSN | Edge machining from the rear in hard to reach areas |  |
